Frac Data Van
COMMAND CENTRAL FRAC DATA VAN

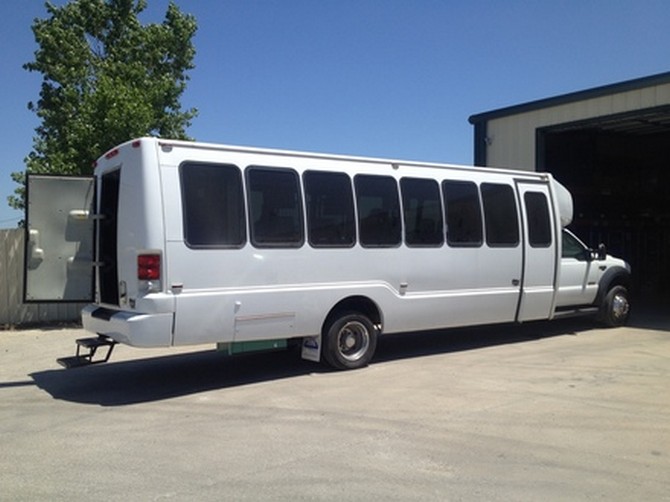

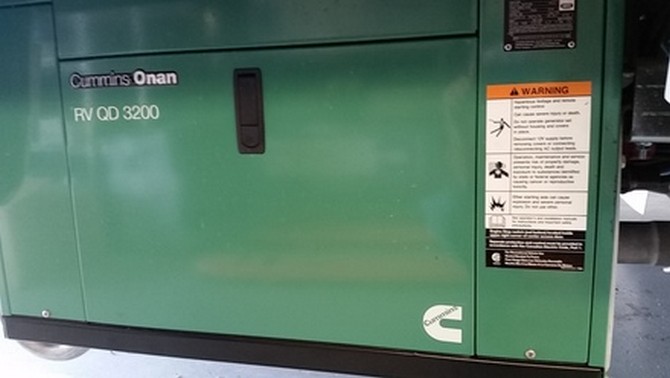

IDMS MANUFACTURES INDUSTRIAL CUSTOM DESIGNED CENTRAL COMMAND OPERATOR CONTROL VANS FOR REMOTE CONTROL AND DATA LOGGING DURING OILFIELD WELL SERVICE OPERATIONS CUSTOM MANUFACTURED COMMAND CENTRAL FRAC DATA VAN WITH THE FOLLOWING INSTALLED FEATURES:
“COMMANDER” Fleet Unit Remote Interface
Interconnect suitecase enclosure
- Weather-tite suitecase with sealed construction
- Integral stainless steel engraved panel
- MIL spec twist lock bulk head & cable end connections
- Permanently engraved instrument grouping & gauge labeling
- Detachable remote data cable connection with molded plastic strain relief

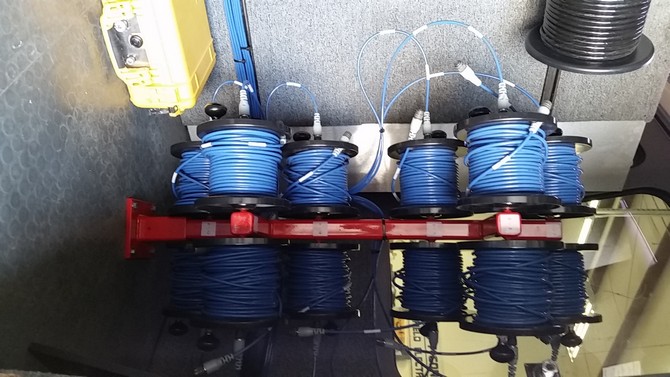

- Detachable molded remote cable with strain relief x 200′

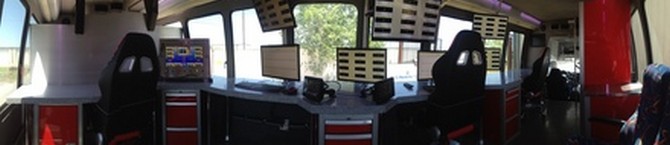

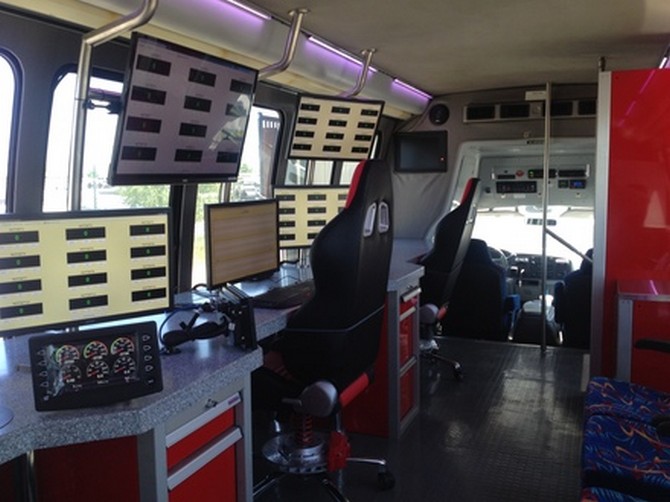

Control / Data Van installed Digital Operator Interface
COMMANDER TRICON-III Digital CAN-Bus (J1939) Pump Control Operator Control Interface includes:

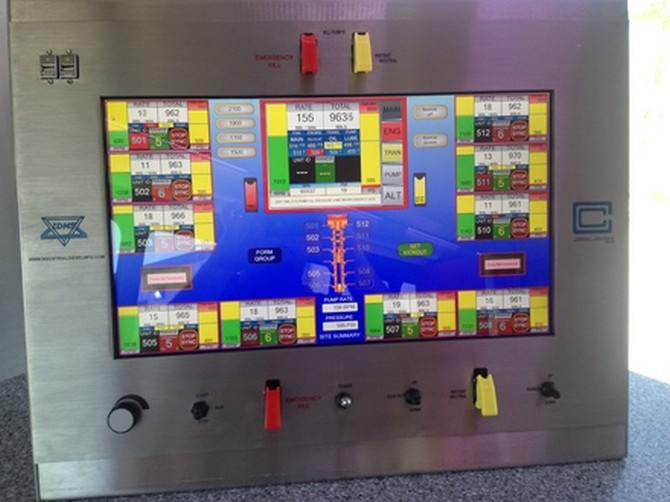

Central, Touch-screen Data Display (Master Control Unit)
Control features:
- Digital engine / transmission/ Pump/ Fan drive run data module
- Major component specific display screens
- Diagnostics error message display & light indicators
- Control power OFF/ON switch
- Engine OFF/RUN/START switch
- Engine throttle speed UP/DOWN rotary control knob
- E-KILL button (emergency engine / transmission shutdown)
Transmission Group (internally mounted)
- Digital range, error message data & diagnostics display module
Pump Data Screen
- Digital data includes:
- Over pressure trip set point
- Lube oil temperature
- Lube oil pressure
- BBL/Min rate
- Input speed rpm
- Plunger Lube Auto/Manual switch
Environmentally sealed display & components include:
- Digital operator’s color display screen data to include:
- Engine speed (rpm)
- Engine coolant temperature (w/ alarm field/text)
- Engine oil pressure (w/ alarm field/text)
- Engine hours
- Battery Voltage
- Fuel Temperature
- Fan drive pump charge pressure
- Fan drive system main pressure
- Fan drive system oil temperature
- Transmission range (w/ lock-up indicator field/text)
- Transmission oil temperature (w/ alarm field/text)
- Pump oil temperature (w/ alarm field/text)
- Pump oil pressure (w/ alarm field/text)
- Error message text display
- Error message code display (J1939, SPN/FMI)
- Pump over pressure trip set point
- Pump rate (BBL/ min)
- Control power OFF/ON switch
- Engine KILL/RUN/START switch
- Engine throttle speed UP/DOWN rotary control knob
- E-KILL switch (emergency engine / transmission shutdown)
- Transmission range selector
- Transmission instant neutral/ idle button
- Pump over pressure set trip point (Pump screen)
INTUIDAQ DATA AQUISISTION SYSTEM
IDMS MANUFACTURES INDUSTRIAL CONTROL DATA AQUISISTION SYSTEMS TO MEET SPECIFIC HIGH PERFORMANCE DEMANDS.
Features include:
Enclosure
Rack mounted enclosure
- Standard industrial rack mounting cabinet
- Gel battery backup w/ shore power inverter

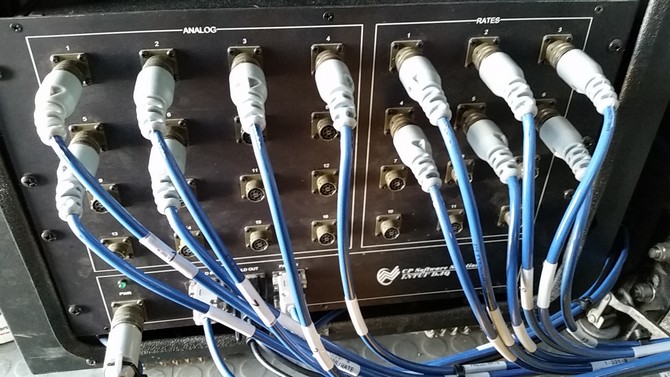

- Aluminum data connector panel w/ MIL spec twist lock bulk head & cable end connections
Instrumentation
Digital display/set-up module
- Flex mounted to counter top fopr easy viewing adjustment regardless of lighted conditions.
- Sealed soft membrane push button control
- USB data out connection
Environmentally sealed gauges & components include:
Guage Group
- Digital data display & calibration module
Inputs
- Standard selectable inputs include: (Expandable up to eight (8))
- Three (3) Pressure
- Two (2) rate
- One (1) Serial
Additional features include:
- Rate totalizer with reset
- Pressure signal calibration
- Configurable serial port
- weather-tight USB user interface port
- Sealed MIL spec twist lock remote data cable connection
