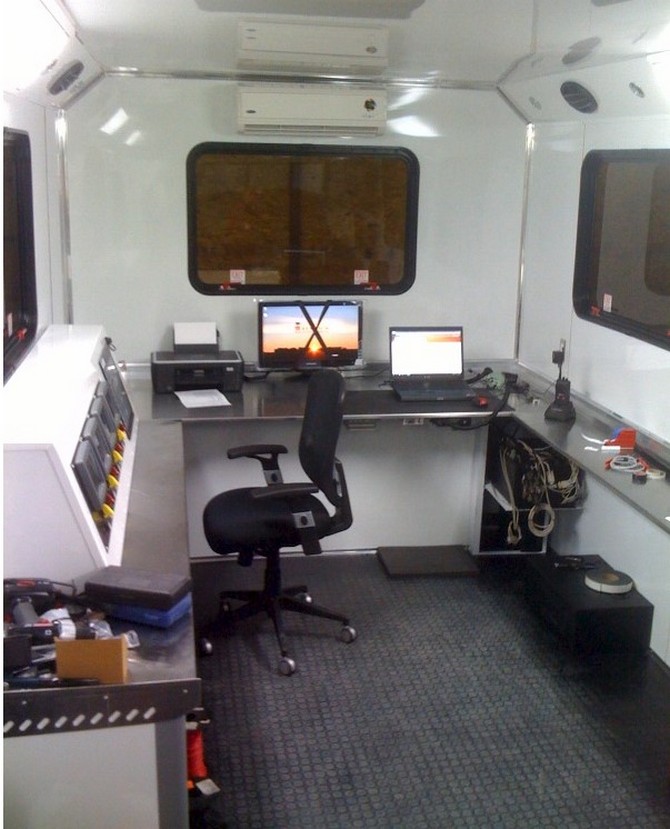

TRICON–III FRAC PUMP DATA VAN CONTROL SYSTEM
IDMS MANUFACTURES INDUSTRIAL FRAC PUMP DATA VAN CONTROL SYSTEMS TO MEET SPECIFIC HIGH PERFORMANCE DEMANDS.
Features include:
Local (Unit Mounted)
Interconnect enclosure
- 316 Stainless steel, Nema 4X construction
- Integral stainless steel wire braid shock mounts
- MIL spec shade hood for reduces internal temperature
- MIL spec twist lock bulk head & cable end connections
- Sealed cable entry seals
- Permanently engraved instrument grouping & gauge labeling
- Detachable remote cable connection with strain relief
Instrumentation (Local & Data Van Remote)
Digital CAN-Bus (J1939) environmentally sealed gauges & components include:
Central Data Display
Engine Group
- Digital engine / transmission/ Pump/ Fan drive run data module
- Major component specific display screens
- Diagnostics error message display & light indicators
- Battery power disconnect OFF/ON disconnect switch
- Work light switch
- Control power OFF/ON switch
- Engine OFF/RUN/START switch
- Engine throttle speed UP/DOWN rotary control knob
- E-KILL button (emergency engine / transmission shutdown)
Transmission Group ( Unit mounted)
- Digital range, error message data & diagnostics display module
Pump Data Screen
- Digital data includes:
- Over pressure trip set point
- Lube oil temperature
- Lube oil pressure
- BBL/Min rate
- Input speed rpm
- Plunger Lube Auto/Manual switch (Unit Mounted)

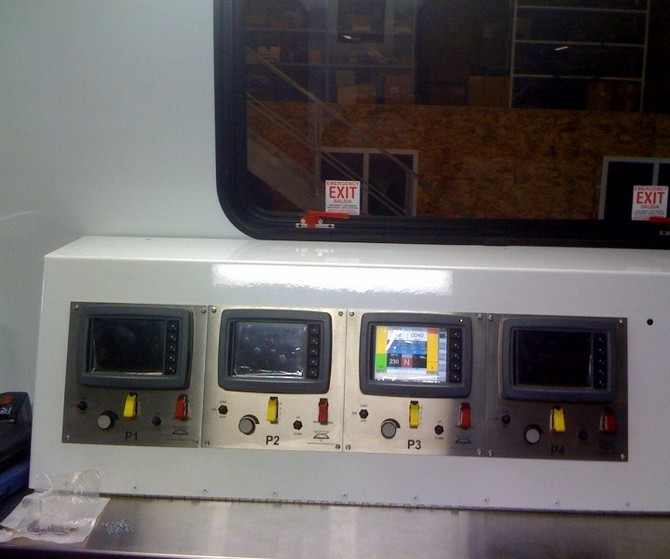

Data Van Remote

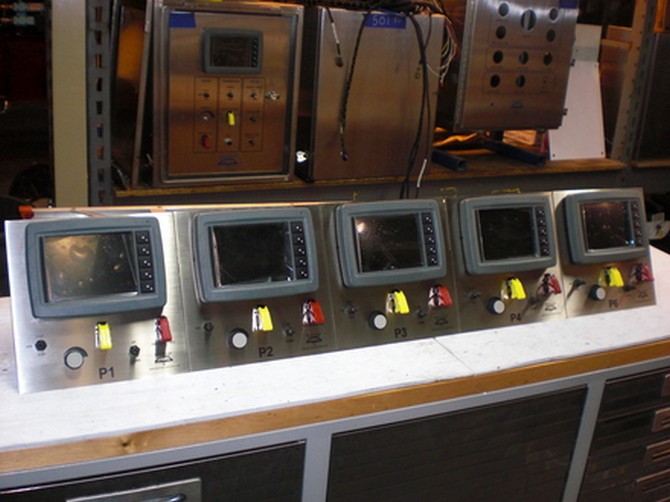

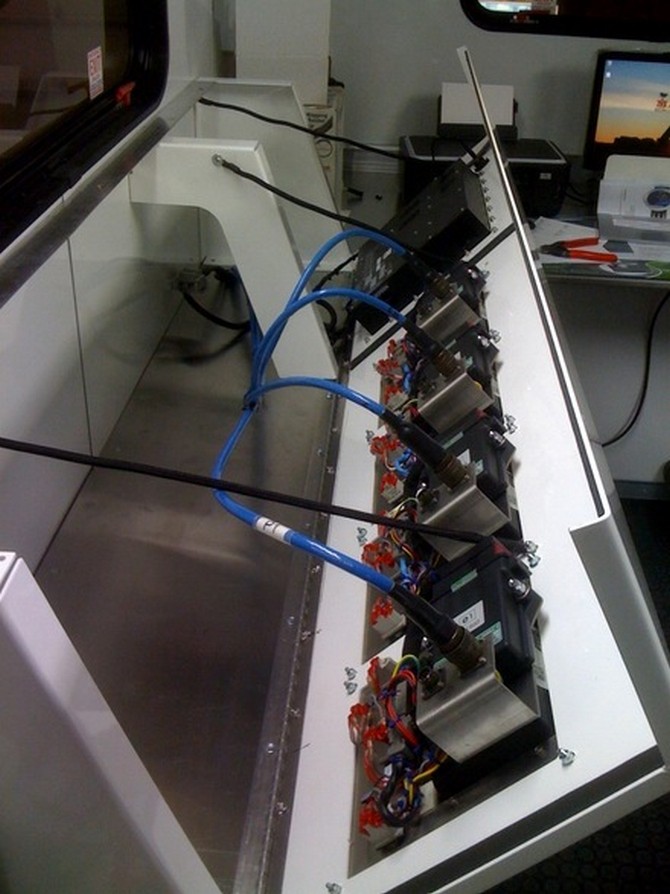

Panel mounted Hardware
- Stainless steel panel mounted
- MIL spec twist lock bulk head & cable end connections
- Sealed remote cable connector
- Permanently etched instrument gauge labeling
- Detachable molded remote cable with strain relief x 200′
Environmentally sealed display & components include:

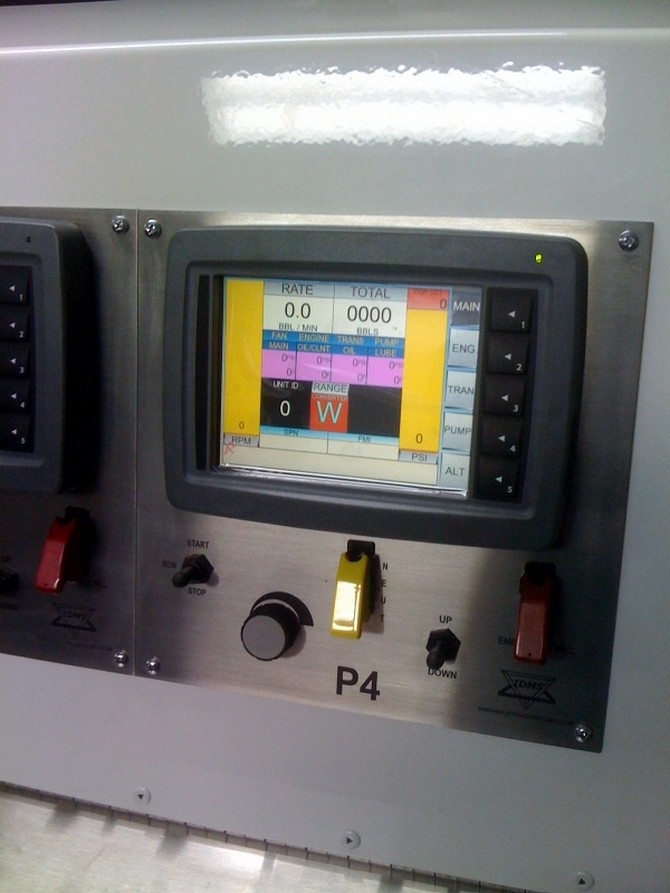

- Digital operator’s color display screen data to include:
- Engine speed (rpm)
- Engine coolant temperature (w/ alarm field/text)
- Engine oil pressure (w/ alarm field/text)
- Engine hours
- Battery Voltage
- Fuel Temperature
- Fan drive pump charge pressure
- Fan drive system main pressure
- Fan drive system oil temperature
- Transmission range (w/ lock-up indicator field/text)
- Transmission oil temperature (w/ alarm field/text)
- Pump oil temperature (w/ alarm field/text)
- Pump oil pressure (w/ alarm field/text)
- Error message text display
- Error message code display (J1939, SPN/FMI)
- Pump over pressure trip set point
- Pump rate (BBL/ min)
- Control power OFF/ON switch
- Engine KILL/RUN/START switch
- Engine throttle speed UP/DOWN rotary control knob
- E-KILL switch (emergency engine / transmission shutdown)
- Transmission range selector
- Transmission instant neutral/ idle button
- Pump over pressure set trip point (Pump screen)
